How to Build Networks Using a Hardware Router (Cont.)



By: Walter Metcalf
Date: 10/05/00

This week we are continuing our short series on the hardware router by continuing to examine its advantages over using one of the PC's on the LAN to do the job. While the latter may more flexible in certain situations, using a dedicated hardware router has many advantages. In this article we shall continue to look at some of these advantages:

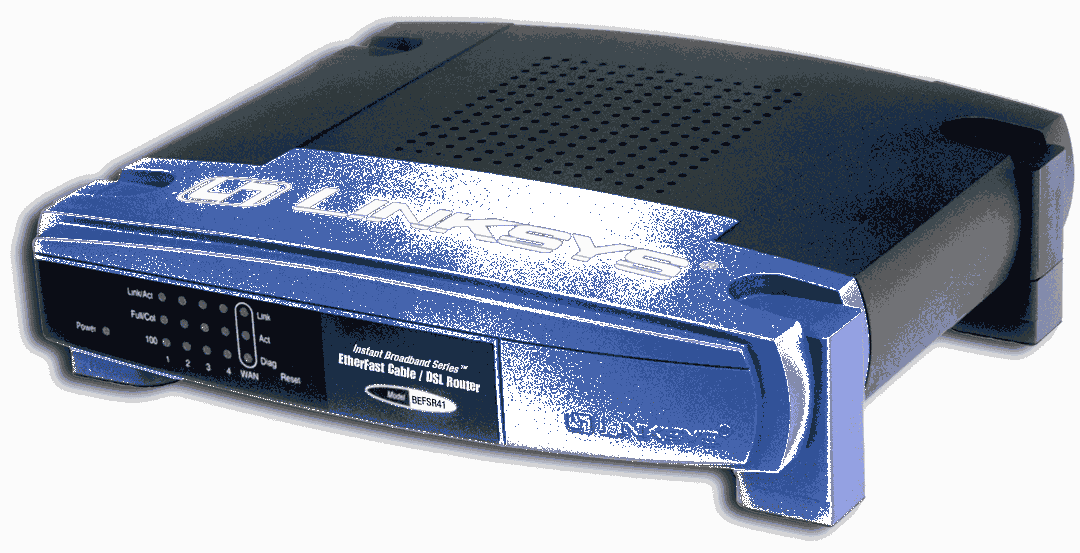

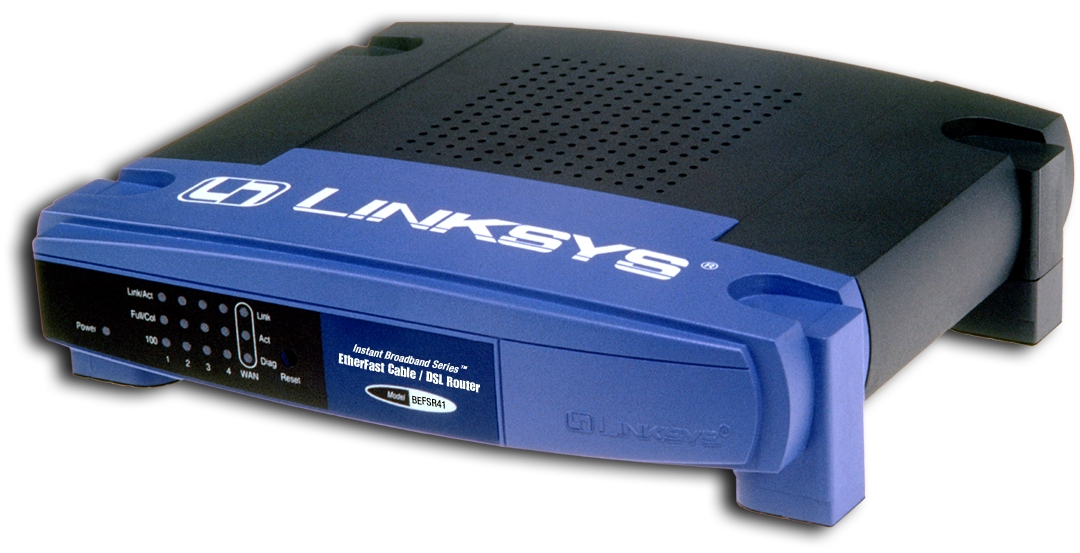

First, however, here is a screen shot of the LinkSys BEFSR41. Its cool design puts the connectors at the back out of the way and multi-coloured LEDS at the front that give you a very complete picture of the activity taking place within both the LAN and the WAN.

[ Click to expand image. ]

B.   Advantages of Using a Router (Cont.)

  1. Any (client) workstation can ALWAYS access the Internet or any other LAN resource that is online.
    1. My family doesn't lose their connection when I reboot, turn off my computer, or perform maintenance on my main computer.

  2. Router's Dynamic IP successfully tracks IP changes due to ISP's DHCP server.
    1. So now we are up virtually all the time. (Cable service interrupts in our area are very rare.)

  3. DHCP Server
    1. Allows me to disconnect a computer from one cable and connect to another without reconfiguring computers.

  4. Supports Dynamic Routing.
    1. Allows multiple routers on the LAN.
      1. e.g. LinkSys & InJoy Firewall on my Desktop.
      2. This might be useful in a situation where two users wanted direct exposure to the Internet. (The LinkSys router only supports one such user.)
    2. I don't currently have a need for this feature.

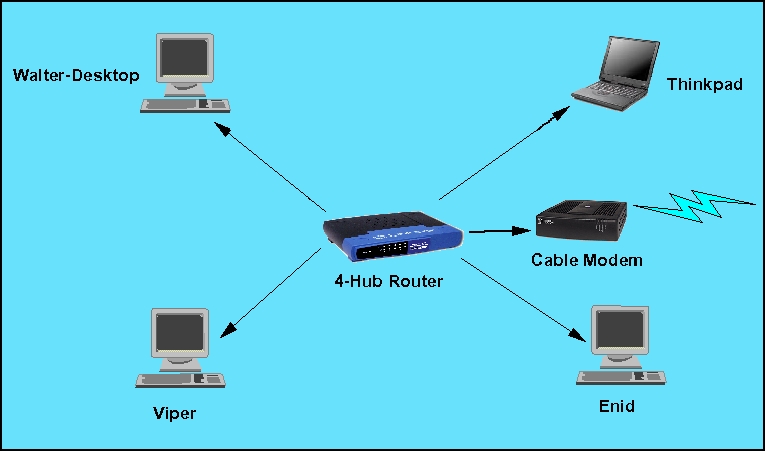

Diagram of Network with Router

[ Click to expand image. ]

If you compare this diagram with that of the Basic Network at the beginning of this series, you'll see that the crucial difference is that instead of one of the PC's standing between the (rest of the) LAN and the cable modem, here the router performs that function. This puts all the PC's on an equal footing, giving them all the same access to the Internet.

Network with H/W Router

C.  Router Installation

  1. Collect Required Information from Cable Provider
    1. For now, assume Static Connection (i.e. IP is fixed).
      1. ISP-assigned IP and Subnet addresses
      2. ISP-assigned Default Route (aka Gateway)
      3. ISP-assigned DNS IP addresses
      4. ISP-assigned Computer Name & Workgroup Name

        [ Click to expand image. ]

  • Point browser at URL 192.168.1.1
    1. When router is connected to your computer it takes IP address 192.168.1.1
    2. Remember to assign your computer a different IP later on when configuring TCPIP notebook.

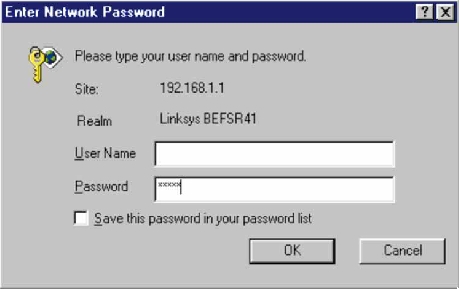

  • Initial Logon
    1. Leave UserName blank
    2. Enter Password = "admin"
    3. Click on OK

      [ Click to expand image. ]

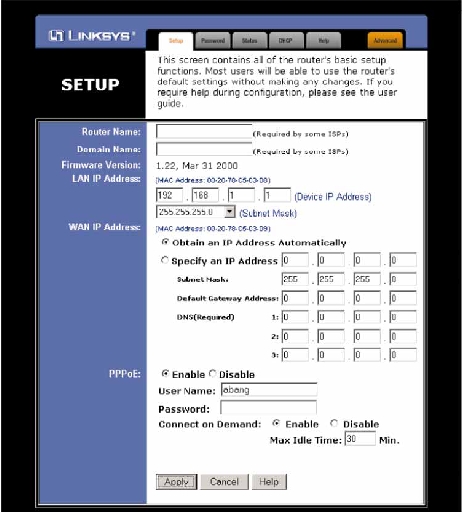

    D.  (Basic) Router Setup

    1. Router Name
      1. name of your computer
      2. supplied by provider
      3. not required by all providers

    2. Domain Name
      1. supplied by provider
      2. not required by all providers (Note)

    3. LAN IP Address
      1. Set to 192.168.1.1 netmask 255.255.255.0

      2. WAN IP Address
        • If your provider uses Dynamic IP, select, "Select IP address automatically"
        • Otherwise, specify the address assigned by your provider.
      3. PPPoE
        • If your provider uses PPP over Ethernet, select Enable, and fill in the rest of the parameters with the correct values.
      4. If all the values are OK, click on "Apply".
      5. Click on "Continue".

    • Next week we shall complete this mini-series appendix to the Peer Networking Series by showing how to modify the OS/2 networking objects to accommodate the router both in static and dynamic modes. Please join us then.
